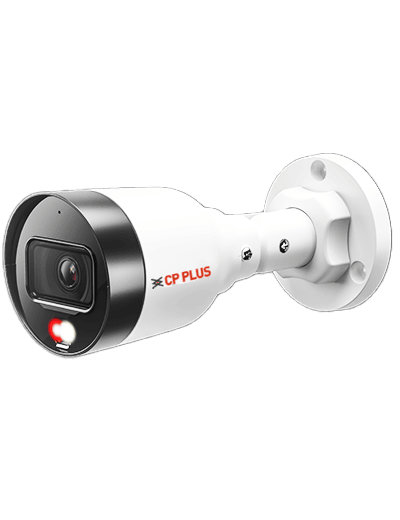

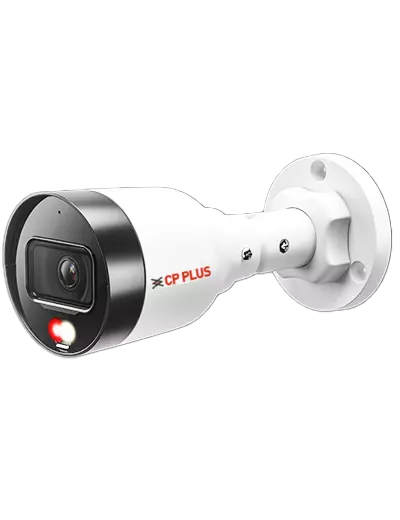

(STQC) Cp Plus 2MP IP Bullet Camera CP-UNC-TA21L3C-LQ
1/2.8" 2MP PS CMOS Image Sensor (0.9071 Centimeters)
Max. 2MP (1920 ×1080)@25/30 fps
Instastream, H.265, H.264, H.264H, H.264B, MJPEG
Support Triple stream
Support Built-in Mic
3.6mm fixed Lens
DWDR, Day/Night (ICR), 3D NR, ROI, AWB, AGC, BLC, HLC, Digital watermarking
IR Range of 30 Mtr., Warm Light Range of 30 Mtr., PoE, IP67
Customize
Product Details
Image Sensor | 1/2.8 |
Effective Pixels | 1920 (H) × 1080 (V) |
Minimum Illumination | 0.005 lux@F1.6 (Color, 30 IRE), 0.005 lux@F1.6 (B/W, 30 IRE), 0 lux (IR on) |
Angle Adjustment | Pan: 0°–360°, Tilt: 0°–90°, Rotation: 0°–360° |
Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
White Balance | Auto, Natural, Street lamp, Outdoor, Manual, Regional custom |
RAM | 128 MB |
ROM | 128 MB |
DORI Distance | Lens 3.6mm: 58.9 m (Detect), 23.6 m (Observe), 11.8 m (Recognize), 5.9 m (Identify); Lens 2.8mm: 44.1 m (Detect), 17.7 m (Observe), 8.8 m (Recognize), 4.4 m (Identify) |
Gain Control (AGC) | Auto/Manual |
Lens Type | Fixed-focal |
Max. Aperture | F1.6 |
Lens Mount | M12 |
Close Focus Distance | 1.3 m |
Lens | 3.6mm fixed Lens |
S/N Ratio | >56dB |
Back Light Compensation | BLC/ HLC/ DWDR |
IR Number | 1 (Multi-core (IR + warm) light) |
IR | IR Range of 30 Mtr. |
Warm Light | Warm Light Range of 30 Mtr. |
Angle of View | 3.6 mm: H: 87°, V: 44°, D: 105° |
Day/Night | Auto(ICR)/Color/B/W |
IR Control | Auto, Manual |
Video Compression | Instastream, H.265, H.264, H.264H, H.264B, MJPEG (Only supported by the sub stream) |
Resolution | 2MP (1920 × 1080), 1.3MP (1280 × 960), 720p (1280 × 720), D1 (704 × 576/704 × 480), VGA (640 × 480), CIF (352 × 288/352 × 240) |
stream Capability | Triple stream |
Frame Rate | Main stream 2MP (1920 × 1080), 1.3MP (1280 × 960) ,720p (1280 × 720)@25/30fps Sub stream 1: 720p/D1/VAG/CIF@25/30Fps Sub stream 2: D1/VGA/CIF/@25/30fps |
Smart search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
Noise Reduction | 3D NR |
Video Format | PAL/NTSC |
Smart IR | Support |
Smart Illumination | Support |
OSD | Camera title, Date & Time |
Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 2MP resolution and lower) |
Audio Compression | G.711a, G.711Mu, PCM, G.726, AAC |
Bit Rate Control | CBR/VBR |
Bit Rate | H.265: 3 kbps-6144 kbps, H.264: 8 kbps-6144 kbps |
Protocol | SFTP, IPv6, IPv4, DNS,RTCP, NTP, RTP, HTTP, HTTPS, SNMP V3, TLS Version 1.2, TCP/IP, PPPoE, NFS, UDP, ICMP, SSL, DHCP, SMTP, RTSPS, ONVIF (Profile S, Profile G, Profile T), unicast, multicast |
Iris Control | Fixed |
Mirror Function | Support |
User/Host | 6 (Total bandwidth: 48 M) |
Browser | IE, Chrome, Firefox |
Ethernet | RJ-45 (10/100 Base-T) |
Alarm Event | Network disconnection, IP conflict, illegal access, Motion detection, Video tampering, Audio detection, SMD (human & Motor Vehicle), Security exception |
Certificates | ISO9001, CE, FCC and RoHS, BIS |
Power Source | 12 VDC/PoE (802.3af) |
Power Consumption | Basic: 1.4 W (12 VDC), 2.2 W (PoE); Max.: 3.3 W (12 VDC), 4.4 W (PoE) (H.265 + intelligence on + warm light intensity) |
Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
Operating Humidity | ≤95% (RH), non-condensing |
Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
Storage Humidity | ≤95%(RH), non-condensing |
Weatherproof Standard | IP67 |
Casing | Metal + Plastic |
Dimension | 162.6 mm × 70 mm× 70 mm |
Weight | 220g |
