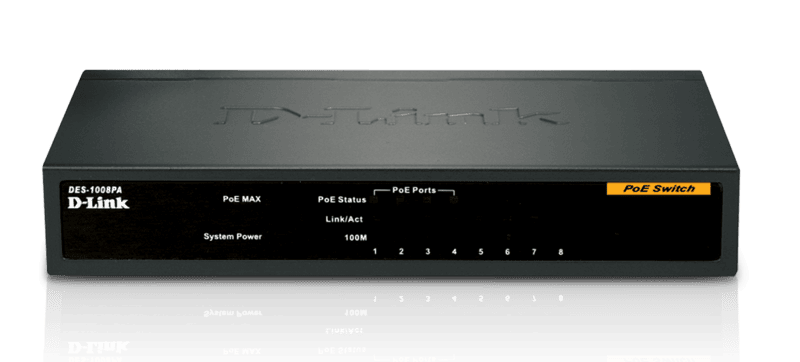

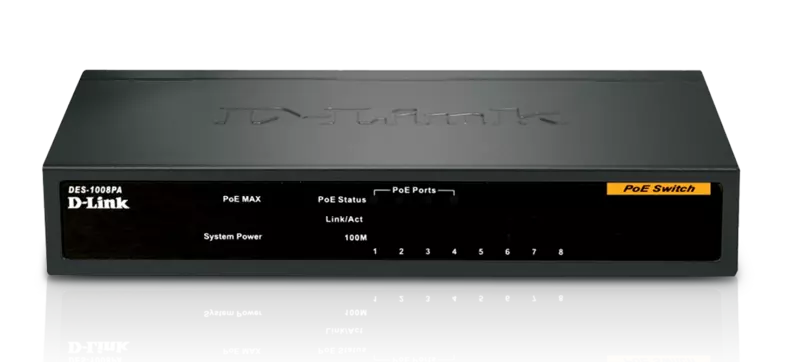

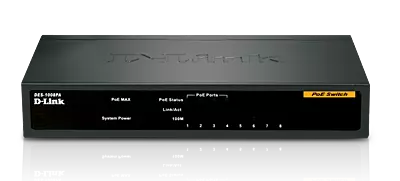

Dlink 4+4 Port POE Switch DES-1008P

Network Standards

IEEE: 802.3 Ethernet, 802.3u Fast Ethernet

• IEEE 802.3x Flow control

• IEEE 802.3af Power over Ethernet




  Device Interfaces


• 4RJ-45 10/100BASE-TX ports with 802.3af PoE

• 4RJ-45 10/100BASE-TX ports without 802.3af PoE

• Power adapter socket

Performance

• MAC Address Table: 1K

• Switch Fabric: 1.6Gps

• Transmission Method: Store-and-forward

• Packet Buffer Memory: 96KB

Diagnostic LEDS

• Per Unit Power/PoE Max

• Per Port: Activity/Link & Speed

• PoE port: Power/Status

Electrical

• Power Supply: 48V DC/1.45A (through external power adapter)

• Max Power Consumption: 62.3 Watts max

• PoE budget: Up to 15.4 Watts max per port (for ports 1 to Port 4 only), 56 Watts total

Temperature

• Operating: 0 - 40 degress C (32 - 104 degrees F)

• Storage: 10 - 70 degrees C (14 - 158 degrees F)

Operating Humidity

• 10% - 95% RH non-condensing

Storage Humidity

• 5% - 90% non-condensing

Dimensions

• 171 (W) x 98 (D) x 29 (H) mm

• (6.73 x 3.86 x 1.14 inches)
