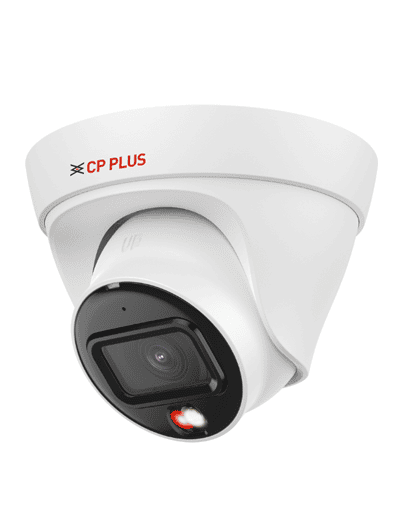

(STQC) Cp Plus 8MP IP Dome Camera CP-UNC-DA81L3C-LQ
1/2.7" 8MP PS CMOS Image Sensor (0.9407 Centimeters)
Max. 8MP (3840 × 2160)@1–20 fps
Instastream, H.265, H.264, H.264H, H.264B, MJPEG
Support Triple stream
Support Built-in Mic
DWDR, Day/Night (ICR), 3D NR, ROI, AWB, AGC, BLC, HLC, Digital watermarking
3.6mm fixed Lens (2.8mm optional)
IR Range of 30 Mtr., Warm Light Range of 30 Mtr., PoE, IP67
Customize
Product Details
Image Sensor | 1/2.7 |
Effective Pixels | 3840 (H) × 2160 (V) |
Minimum Illumination | 0.001 lux@F1.4 (Color, 30 IRE), 0.0001 lux@F1.4 (B/W, 30 IRE), 0 lux (IR on) |
Angle Adjustment | Pan: 0°–360°, Tilt: 0°–78°, Rotation: 0°–360° |
Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
White Balance | Auto, Natural, Street lamp, Outdoor, Manual, Regional custom |
RAM | 256 MB |
DORI Distance | Lens 3.6mm: 98.7 m (Detect), 39.5 m (Observe), 19.7 m (Recognize), 9.9 m (Identify) Lens 2.8mm: 84.8 m (Detect), 33.9 m (Observe), 17.0 m (Recognize), 8.5 m (Identify) |
Gain Control (AGC) | Auto/Manual |
Lens Type | Fixed-focal |
Max. Aperture | F1.4 |
Close Focus Distance | 3.6 mm: 1.9 m, 2.8 mm: 1.5 m |
Lens Mount | M12 |
Lens | 3.6mm fixed Lens (2.8mm optional) |
Video Compression | Instastream, H.265, H.264, H.264H, H.264B, MJPEG (Only supported by the sub stream) |
S/N Ratio | >56dB |
IR Number | 1 (Multi-core (IR + warm) light) |
IR | IR Range of 30 Mtr. |
Day/Night | Auto(ICR)/Color/B/W |
Angle of view | 3.6 mm: H: 86°, V: 49°, D: 100°; 2.8 mm: H: 110°, V: 58°, D: 132° |
Back Light Compensation | BLC/ HLC/ DWDR |
Stream Capability | Triple stream |
Frame Rate | Main stream: 8MP (3840 × 2160)@1–20 fps, 4MP (2688 ×1520)@1–25/30 fps Sub stream 1: D1 (704 × 576)@1–25 fps/ (704 × 480)@1–30fps Sub stream 2: D1 (704 × 576)@1–25 fps/ (704 × 480)@1–30fps |
Smart search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
Video Format | PAL/NTSC |
ROI | Support (4 areas) |
OSD | Camera title, Date & Time |
Audio | Built-in Mic |
Audio Compression | G.711a, G.711Mu, PCM, G.726, AAC |
Bit Rate | H.265: 3 kbps–8192 kbps, H.264: 3 kbps–8192 kbps |
Bit Rate Control | CBR/VBR |
Protocol | SFTP, IPv6, IPv4, DNS,RTCP, NTP, RTP, HTTP, HTTPS, SNMP V3, TLS Version 1.2, TCP/IP, PPPoE, NFS, UDP, ICMP, SSL, DHCP, SMTP, RTSPS, ONVIF (Profile S, Profile G, Profile T), unicast, multicast |
SDK and API | Support |
Ethernet | RJ-45 (10/100 Base-T) |
Resolution | 8MP (3840 × 2160), 6MP (3072 × 2048), 5MP (3072 × 1728), 4MP (2880 × 1620/2688 × 1520), 3MP (2048 × 1536/2304 × 1296), 2MP (1920 × 1080), 1.3MP (1280 × 960), 720p (1280 × 720), D1 (704 × 576/704 × 480), VGA (640 × 480), CIF (352 × 288/352 × 240) |
Noise Reduction | 3D NR |
Motion Detection | OFF/ON (4 areas, rectangular) |
SMD | Support the classification and accurate detection of human and vehicle |
Mirror Function | Support |
IR Control | Auto, Manual |
Iris Control | Fixed |
Smart IR | Support |
Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 2688 ×1520 resolution and lower) |
User/ Host | 6 (Total bandwidth: 48 M) |
Browser | IE, Chrome, Firefox |
Certificates | ISO9001, CE, FCC and RoHS |
Power Source | 12 VDC/PoE (802.3af) |
Power Consumption | Basic: 2.5 W (12 VDC), 3.5 W (PoE) Max.: 4.5 W (12 VDC), 5.8 W (PoE) (H.265 + intelligence on+ DWDR + illuminator intensity) |
Weatherproof Standard | IP66 |
Operating Temperature | –40 °C to +55 °C (–40 °F to 131 °F) |
Operating Humidity | ≤95% (RH), non-condensing |
Storage Temperature | –40 °C to +55 °C (–40 °F to 131 °F) |
Storage Humidity | ≤95%(RH), non-condensing |
Dimension | 85.5mm × 109mm |
Casing | Metal + Plastic |
Weight | 280g |
