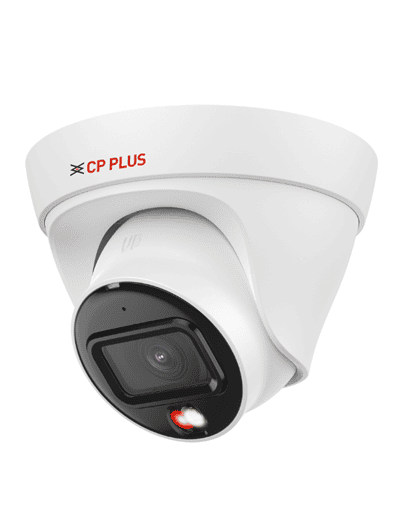

(STQC) Cp Plus 4MP IP Dome Camera CP-UNC-DA41L3C-D-LQ
1/2.9" 4MP PS CMOS Image Sensor (0.8758 Centimeters)
Max. 4MP (2688 × 1520)/ (2560 × 1440)@25/30 fps
Instastream, H.265, H.264, H.264H, H.264B, MJPEG
Support Triple stream
Support Built-in Mic
3.6mm fixed Lens
WDR (120dB), Day/Night (ICR), 3D NR, ROI, AWB, AGC, BLC, HLC,
IR Range of 30 Mtr., Warm Light Range of 30 Mtr., PoE, IP67
Customize
Product Details
Image Sensor | 1/2.9 |
Effective Pixels | 2688 (H) × 1520 (V) |
Minimum Illumination | 0.06 lux@F1.6 (Color, 30 IRE), 0.006 lux@F1.6 (B/W, 30 IRE), 0 lux (IR on) |
Angle Adjustment | Pan: 0°–360°, Tilt: 0°–78°, Rotation: 0°–360° |
Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
White Balance | Auto, Natural, Street lamp, Outdoor, Manual, Regional custom |
RAM | 128 MB |
ROM | 128 MB |
DORI Distance | Lens 3.6mm: 85.4 m (Detect), 34.2 m (Observe), 17.1 m (Recognize), 8.5 m (Identify) |
Gain Control (AGC) | Auto/Manual |
Lens Type | Fixed-focal |
Max. Aperture | F1.6 |
Day/Night | Auto(ICR)/Color/B/W |
Lens Mount | M12 |
Close Focus Distance | 3.6 mm: 1.7 m |
Lens | 3.6mm fixed Lens |
S/N Ratio | >56dB |
Angle of view | 3.6 mm: H: 78°, V: 40°, D: 93° |
Back Light Compensation | BLC/ HLC/ WDR(120dB) |
IR Number | 1 (Multi-core (IR + warm) light) |
IR | IR Range of 30 Mtr. |
Warm Light | Warm Light Range of 30 Mtr. |
Smart IR | Support |
Smart Illumination | Support |
Stream Capability | Triple stream |
Frame Rate | Main stream: 4MP (2688 × 1520)/ (2560 × 1440)@1-25/30fps Sub stream 1: 720P( 1280 × 720) D1 (704 × 576)@1–25 fps/ (704 × 480)@1–30 fps, VGA(640 × 480)@1-30fps, CIF (352 × 240)@1-30fps, (352 × 288) @1-25fps Sub stream 2: D1 (704 × 576)@1–25 fps/ (704 × 480)@1–30 fps, VGA(640 × 480)@1-30fps, CIF (352 × 240)@1-30fps/ (352 × 288) @1-25fps |
Video Compression | Instastream, H.265, H.264, H.264H, H.264B, MJPEG (Only supported by the sub stream) |
Resolution | 4M (2688 x 1520), 4M (2560 × 1440), 3M (2304 × 1296), 2M (1920 × 1080), 1.3M (1280 × 960), 720p (1280 × 720), D1 (704 × 576 / 704 × 480), VGA (640 × 480), CIF (352 × 288 / 352 × 240) |
Noise Reduction | 3D NR |
Motion Detection | OFF/ON (4 areas, rectangular) |
Video Format | PAL/NTSC |
Privacy Mask | 4 areas |
OSD | Camera title, Date & Time |
Audio Compression | G.711a, G.711Mu, PCM, G.726, AAC |
Protocol | SFTP, IPv6, IPv4, DNS,RTCP, NTP, RTP, HTTP, HTTPS, SNMP V3, TLS Version 1.2, TCP/IP, PPPoE, NFS, UDP, ICMP, SSL, DHCP, SMTP, RTSPS, ONVIF (Profile S, Profile G, Profile T), unicast, multicast |
SDK and API | Support |
Ethernet | RJ-45 (10/100 Base-T) |
Cyber Security | AES 256-bit Encryption, Configuration encryption, trusted execution, Digest, security logs, WSSE, account lockout, syslog, video encryption, IP/MAC filtering, HTTPS, trusted upgrade, trusted boot |
Mirror Function | Support |
Audio | Built-in Mic |
IR Control | Auto, Manual |
Iris Control | Fixed |
Image Rotation | 4MP only support 0°/180°. 2MP & lower will support 0°/90°180°/270° |
Bit Rate Control | CBR/VBR |
Bit Rate | H.265: 3 kbps-6144 kbps, H.264: 8 kbps-6144 kbps |
User/Host | 6 (Total bandwidth: 36 M) |
Browser | IE, Chrome, Firefox |
Weatherproof Standard | IP67 |
Certificates | ISO9001, CE, FCC and RoHS, BIS |
Power Source | 12 VDC/PoE (802.3af) |
Power Consumption | Basic: 1.6 W (12 VDC), 2.0 W (PoE) Max. : 3.7 W (12 VDC), 4.7 W (PoE) (H.265 + intelligence on + WDR+ warm light intensity) |
Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
Operating Humidity | ≤95% (RH), non-condensing |
Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
Storage Humidity | ≤95% (RH), non-condensing |
Dimensions | 85.5 mm × 109 mm |
Weight | 250 g |
