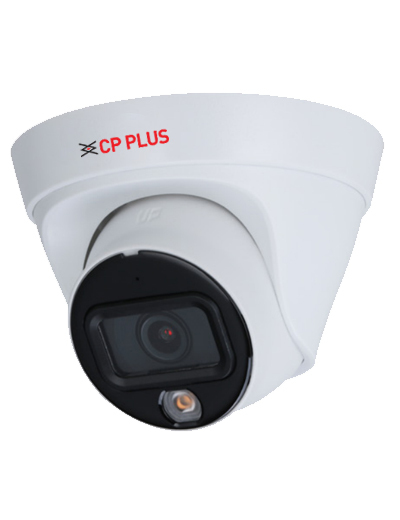

(STQC) Cp Plus 6MP IP Dome Camera CP-UNC-DA61L3C-LQ

Image Sensor

1/2.7" 6MP PS CMOS Image Sensor (0.9407 Centimeters)

Effective Pixels

3200 (H) × 1800 (V)

Minimum Illumination

0.001 lux@F1.4 (Color, 30 IRE), 0.0001 lux@F1.4 (B/W, 30 IRE), 0 lux (IR on)

Angle Adjustment

Pan: 0°–360°, Tilt: 0°–78°, Rotation: 0°–360°

Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

White Balance

Auto, Natural, Street lamp, Outdoor, Manual, Regional custom

RAM

256 MB

ROM

128 MB

DORI Distance

Lens 3.6mm: 85.4 m (Detect), 34.2 m (Observe), 17.1 m (Recognize), 8.5 m (Identify) Lens 2.8mm: 63.6 m (Detect), 25.4 m (Observe), 12.7 m (Recognize), 6.4 m (Identify)

Gain Control (AGC)

Auto/Manual

Lens Type

Fixed-focal

Max. Aperture

F1.4

Lens Mount

M12

Close Focus Distance

3.6 mm: 1.7 m, 2.8 mm: 1.1 m

Lens

3.6mm fixed Lens (2.8mm optional)

S/N Ratio

>58dB

IR Number

1 (Multi-core (IR + warm) light)

IR

IR Range of 30 Mtr.

Warm Light

Warm Light Range of 30 Mtr.

Angle of View

3.6 mm: H: 91°, V: 46°, D: 110°; 2.8 mm: H: 110°, V: 58°, D: 132°

Back Light Compensation

BLC/ HLC/ DWDR

Video Compression

Instastream, H.265, H.264, H.264H, H.264B, MJPEG (Only supported by the sub stream)

Day/Night

Auto (ICR)/Color/B/W

Mirror Function

Support

IR Control

Auto, Manual

Audio

Built-in Mic

stream Capability

Triple stream

Frame Rate

Main stream: 6MP (3200 × 1800)@1–20 fps/ (2688 × 1520)@1–25/30 fps Sub stream 1: D1 (704 × 576)@1–25 fps/ (704 × 480)@1–30fps Sub stream 2: D1 (704 × 576)@1–25 fps/ (704 × 480)@1–30fps

Video Format

PAL/NTSC

Privacy Mask

4 areas

ROI

Support (4 areas)

OSD

Camera title, Date & Time

Smart search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Resolution

6MP (3200 × 1800), 4MP (2880 × 1620/2688 × 1520), 3MP (2048 × 1536/2304 × 1296), 2MP (1920 × 1080), 1.3MP (1280 × 960), 720P (1280 × 720), D1 (704 × 576/704 × 480), VGA (640 × 480), CIF (352 × 288/352 × 240)

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Audio Compression

G.711a, G.711Mu, PCM, G.726, AAC

Bit Rate Control

CBR/VBR

Bit Rate

H.265: 12 kbps–8192 kbps, H.264: 32 kbps–8192 kbps

Protocol

SFTP, IPv6, IPv4, DNS,RTCP, NTP, RTP, HTTP, HTTPS, SNMP V3, TLS Version 1.2, TCP/IP, PPPoE, NFS, UDP, ICMP, SSL, DHCP, SMTP, RTSPS, ONVIF (Profile S, Profile G, Profile T), unicast, multicast

SDK and API

Support

Ethernet

RJ-45 (10/100 Base-T)

Alarm Event

Network disconnection, IP conflict, illegal access, Motion detection, Video tampering, Audio detection, SMD (human & Motor Vehicle), Security exception

SMD

Support the classification and accurate detection of human and vehicle

Cyber Security

AES 256-bit Encryption, Configuration encryption, trusted execution, Digest, security logs, WSSE, account lockout, syslog, video encryption, IP/MAC filtering, HTTPS, trusted upgrade, trusted boot

Smart Illumination

Support

Smart IR

Support

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)

Iris Control

Fixed

Browser

IE, Chrome, Firefox

User/Host

20 (Total bandwidth: 48 M)

Weatherproof Standard

IP67

Certificates

ISO9001, CE, FCC and RoHS

Power Source

12 VDC/PoE (802.3af)

Power Consumption

Basic: 2 W (12 VDC), 2.9 W (PoE) Max.: 4 W (12 VDC), 5.3 W (PoE) (H.265 + intelligence on+ DWDR + illuminator intensity)

Operating Temperature

–40 °C to +55 °C (–40 °F to 131 °F)

Operating Humidity

≤95% (RH), non-condensing

Storage Temperature

–40 °C to +55 °C (–40 °F to 131 °F)

Storage Humidity

≤95%(RH), non-condensing

Dimension

85.5 mm × 109 mm

Casing

Metal + Plastic

Weight

280g
