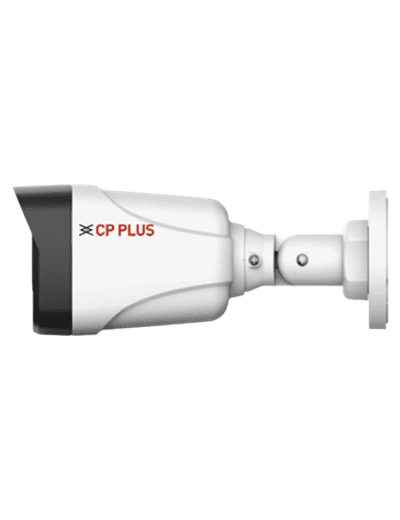

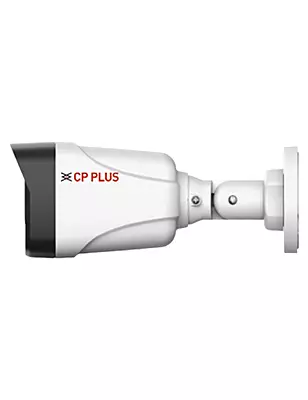

(STQC) Cp Plus 2MP IP Bullet Camera 6MM CP-UNC-TA21L6C-Q
1/2.7" 2MP PS CMOS Image Sensor (0.9407 Centimeters)
Max. 2MP (1920 x 1080)@25/30fps
Instastream, H.265, H.264, H.264H, H.264B, MJPEG
Support Triple stream
DWDR, Day/Night(ICR), 3D NR, AWB, AGC, BLC, HLC
6mm Fixed Lens
Support Built-in Mic
IR Range of 60 Mtr., IP67, PoE
Customize
Product Details
Image Sensor | 1/2.7" 2MP PS CMOS Image Sensor (0.9407 Centimeters) |
Minimum Illumination | 0.001 lux@F1.4 (Color, 30 IRE), 0.0001 lux@F1.4 (B/W, 30 IRE), 0 lux (IR on) |
Effective Pixels | 1920 (H) × 1080 (V) |
Angle Adjustment | Pan: 0°–360°, Tilt: 0°–90°, Rotation: 0°–360° |
Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
White Balance | Auto, Natural, Street lamp, Outdoor, Manual, Regional custom |
RAM | 128 MB |
ROM | 128 MB |
Close Focus Distance | 2.6 m |
Gain Control(AGC) | Auto, Manual |
Max. Aperture | F1.4 |
Iris Control | Fixed |
Lens Type | Fixed-focal |
Lens | 6mm Fixed Lens |
Lens Mount | M12 |
DORI Distance | 85.5 m (Detect), 34.2 m (Observe), 17.1 m (Recognize), 8.6 m (Identify) |
IR Number | 4 IR LED |
IR | IR Range of 60 Mtr. |
Back Light Compensation | BLC/ HLC/ DWDR |
IR Control | Auto, Manual |
Day/Night | Auto(ICR)/Color/B/W |
Angle of view | H: 54°, V: 29°, D: 63° |
S/N Ratio | >58dB |
Video Compression | Instastream, H.265, H.264, H.264H, H.264B, MJPEG (only supported by the sub stream) |
Resolution | 2MP (1920 ×1080), 1.3MP (1280 × 960), 720p (1280 × 720), D1 (704 × 576/704 × 480), VGA (640 × 480), CIF (352 × 288/352 × 240) |
stream Capability | Triple stream |
Frame Rate | Main stream: 2MP (1920 ×1080)/1.3MP (1280 × 960)/ 720P@25/30fps Sub stream 1: 720p/D1/VAG/CIF@25/30Fps Sub stream 2: D1/VGA/CIF/@25/30fps |
Video Format | PAL/NTSC |
Smart IR | Support |
Smart search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
Noise Reduction | 3D NR |
Motion Detection | OFF/ON (4 areas, rectangular) |
Privacy Mask | 4 areas |
ROI | Support (4 Areas) |
Audio | Built-In Mic |
Audio Compression | G.711a, G.711Mu, PCM, G.726, AAC |
Bit Rate | H.265: 3 kbps-6144 kbps, H.264: 8 kbps-6144 kbps |
Bit Rate Control | CBR/VBR |
Human body Detection | Support the classification and accurate detection of human |
Protocol | SFTP, IPv6, IPv4, DNS,RTCP, NTP, RTP, HTTP, HTTPS, SNMP V3, TLS Version 1.2, TCP/IP, PPPoE, NFS, UDP, ICMP, SSL, DHCP, SMTP, RTSPS, ONVIF (Profile S, Profile G, Profile T), unicast, multicast |
OSD | Camera title, Date & Time |
Ethernet | RJ-45 (10/100 Base-T) |
SDK and API | Support |
Alarm Event | Network disconnection, IP conflict, illegal access, Motion detection, Video tampering, Audio detection, SMD (human & Motor Vehicle), Security exception |
Cyber Security | AES 256-bit Encryption, Configuration encryption, trusted execution, Digest, security logs, WSSE, account lockout, syslog, video encryption, IP/MAC filtering, HTTPS, trusted upgrade, trusted boot |
Mirror Function | Support |
Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower) |
Browser | IE, Chrome, Firefox |
User/Host | 6 (Total bandwidth: 36 M) |
Certificates | ISO9001, CE, FCC and RoHS, BIS |
Weatherproof Standard | IP67 |
Power Source | 12 VDC/PoE (802.3af) |
Power Consumption | Basic: 1.7 W (12 VDC); 2.5 W (PoE) Max. (H.265 + intelligence on+ DWDR + illuminator intensity): 5 W (12 VDC); 6.2W (PoE) |
Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
Operating Humidity | ≤95% |
Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
Storage Humidity | ≤95% |
Casing | Metal + Plastic |
Dimension | 197.9 mm × 80.2 mm × 76.2 mm |
Weight | 310g |
