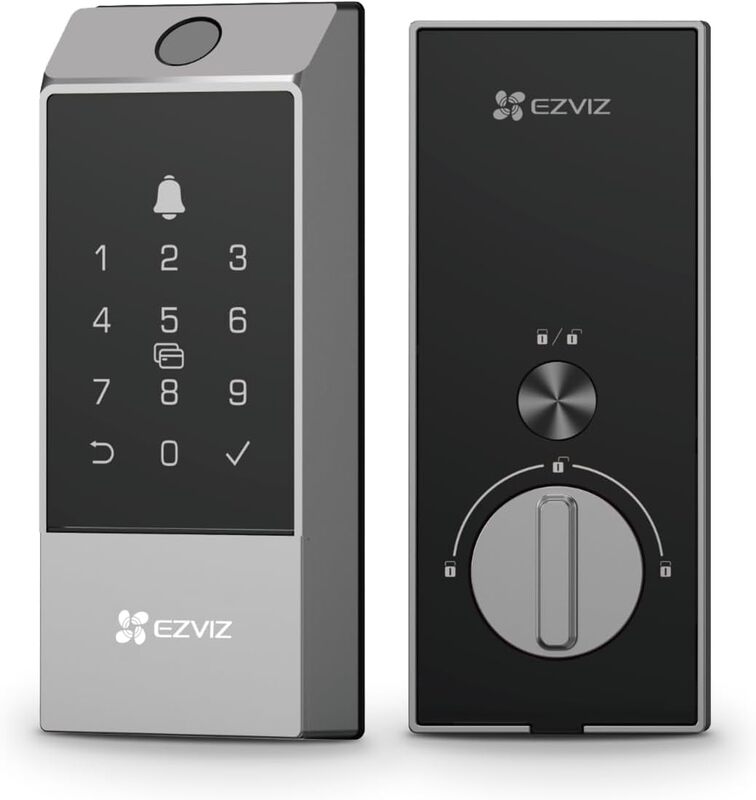

Ezviz Smart Deadbolt Lock DL04 Pro CS-DL04-R100-WBCP-GR
Connects to 2.4 GHz Wi-Fi
Fingerprint Unlocking
Remote EZVIZ App Unlocking & Controls
Lock Status Check & Alerts
Multiple Unlock Methods
Smart Integration with EZVIZ Cameras¹
Supports Anti-Peeping Codes
Sturdy Design
Anti-Tamper Alarm
Supports Emergency Power Supply (Type-C)
Model | CS-DL04 Pro |
|---|---|
Technical Specification | |
Product material | Aluminum + Plastic |
Dimensions | Front Panel: 160 × 67 × 25 mm (6.29 × 2.63 × 0.98 inch) Rear Panel: 166 × 70 × 28.5 mm (6.53 × 2.75 × 1.12 inch) |
Communication | EZVIZ Connect 2.4G Wi-Fi |
Keyless unlocking | Supports |
Bluetooth Key | Supports (max. 50 groups) |
Working power | 4 AA Alkaline Batteries |
Working condition | -20°C ~ 60°C Humidity 10% ~ 95% (Non-condensing) |
APP Function | |
Lock status check | Supports |
User management | Supports |
Message notification | Supports |
Privacy mode | Supports (enable via EZVIZ App) |
Temporary passcode | Supports |
Remote unlock | Supports |
Real-time notification | Supports |
EZVIZ Connect | Supports |
Low battery alert | Supports |
Front Panel Function | |
Fingerprint unlock | Supports (max. 50 groups) |
Password unlock | Supports (max. 50 groups, 6 to 10 digits) |
Virtual passcode | Supports |
Proximity card unlocking | Supports |
Electric doorbell | Supports |
Low battery alert | Supports |
Anti-tamper alert | Supports |
Anti-test alert | Supports (enter 5 errors in 5 minutes, locked for 3 minutes) |
In the box | |
In the box | - DL04 Pro Front Panel |
- DL04 Pro Rear Panel | |
- Screw Kit | |
- Mounting Bracket | |
- AA-Sized Battery × 4 | |
- Proximity Card × 2 | |
- Lock Cylinder Kit | |
- Lock Body Kit | |
- Hole Templet | |
- Regulatory Information | |
- Regulatory Information | |
- Quick Start Guide | |
Certifications | |
Certifications | CE (EMC/LVD/RED/ROHS) / BHMA / REACH / SVHC / WEEE |
