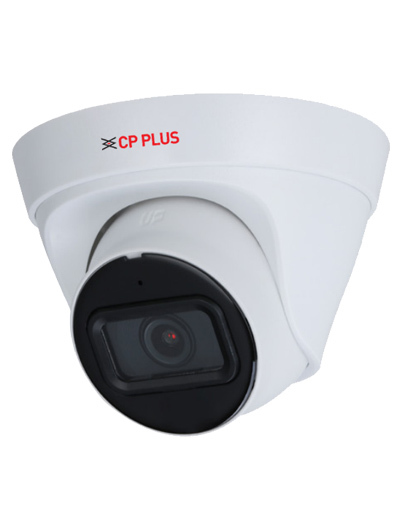

(STQC) Cp Plus 4MP IP Dome Camera CP-UNC-DA41L3C-D-Q
1/2.9” 4MP PS CMOS Image Sensor (0.8758 centimeters)
Max. 4MP (2688 × 1520)@1-25/30fps/ (2560 × 1440)@1-25/30
Instastream, H.265, H.264, H.264H, H.264B, MJPEG
Support Triple stream
WDR (120dB), Day/Night(ICR), 3D NR, AWB, AGC, BLC, HLC, Digital watermarking
3.6mm fixed Lens
IR Range of 30 Mtr., IP67, PoE
Customize
Product Details
Image Sensor | 1/2.9” 4MP PS CMOS Image Sensor (0.8758 centimeters) |
Effective Pixels | 2688 (H) × 1520 (V) |
Minimum Illumination | 0.03 lux@F2.0 (Color, 30 IRE), 0.003 lux@F2.0 (B/W, 30 IRE), 0 lux (IR on) |
Angle Adjustment | Pan: 0°–360°, Tilt: 0°–78°, Rotation: 0°–360° |
Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
White Balance | Auto, Natural, Street lamp, Outdoor, Manual, Regional custom |
RAM | 128 MB |
ROM | 128 MB |
DORI Distance | Lens 3.6mm: 76.0 m (Detect), 30.4 m (Observe), 15.2 m (Recognize), 7.6 m (Identify) |
Gain Control (AGC) | Auto, Manual |
Lens Type | Fixed-focal |
Max. Aperture | F2.0 |
Lens Mount | M12 |
Close Focus Distance | 1.3 m |
Lens | 3.6mm fixed Lens |
Video Compression | Instastream, H.265, H.264, H.264H, H.264B, MJPEG (only supported by the sub stream) |
Angle of view | 3.6 mm: H: 78°, V: 43°, D: 92° |
Back Light Compensation | BLC/ HLC/ WDR(120dB) |
IR | IR Range of 30 Mtr. |
Smart IR | Support |
IR Number | 1 IR LED |
Resolution | 4MP (2688 x 1520)/ (2560 × 1440), 3MP (2304 × 1296), 2MP (1920 × 1080), 1.3MP (1280 × 960), 720p (1280 × 720), D1 (704 × 576 / 704 × 480), VGA (640 × 480), CIF (352 × 288 / 352 × 240) |
Mirror Function | Support |
Iris Control | Fixed |
Day/Night | Auto(ICR)/Color/B/W |
IR Control | Auto, Manual |
Frame Rate | Main stream: 4MP (2688 × 1520)@1-25/30fps/ (2560 × 1440)@1-25/30 Sub stream 1: 720p/D1/VAG/CIF@25/30Fps Sub stream 2: D1/VGA/CIF/@25/30fps |
Stream Capability | Triple stream |
Smart search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
Noise Reduction | 3D NR |
Motion Detection | OFF/ON (4 areas, rectangular) |
Video Format | PAL/NTSC |
Privacy Mask | 4 areas |
ROI | Support (4 Areas) |
OSD | Camera title, Date & Time |
Audio Compression | G.711a, G.711Mu, PCM, G.726, AAC |
Bit Rate | H.265: 3 kbps-6144 kbps, H.264: 8 kbps-6144 kbps |
Bit Rate Control | CBR/VBR |
Human body Detection | Support the classification and accurate detection of human |
Protocol | SFTP, IPv6, IPv4, DNS,RTCP, NTP, RTP, HTTP, HTTPS, SNMP V3, TLS Version 1.2, TCP/IP, PPPoE, NFS, UDP, ICMP, SSL, DHCP, SMTP, RTSPS, ONVIF (Profile S, Profile G, Profile T), unicast, multicast |
SDK and API | Support |
Ethernet | RJ-45 (10/100 Base-T) |
Alarm Event | Network disconnection, IP conflict, illegal access, Motion detection, Video tampering, Audio detection, SMD (human & Motor Vehicle), Security exception |
Cyber Security | AES 256-bit Encryption, Configuration encryption, trusted execution, Digest, security logs, WSSE, account lockout, syslog, video encryption, IP/MAC filtering, HTTPS, trusted upgrade, trusted boot |
Image Rotation | 4MP only support 0°/180° 2MP & lower will support 0°/90°180°/270° |
Certificates | ISO9001, CE, FCC and RoHS, BIS |
Power Source | 12 VDC/ PoE (802.3af) |
Power Consumption | Basic: 1.5 W (12 VDC), 1.9 W (PoE); Max. (H.265 + intelligence on + WDR+ IR intensity): 3.5 W (12 VDC), 4.3 W (PoE) |
User/Host | 6 (Total bandwidth: 36 M) |
Browser | IE, Chrome, Firefox |
Weatherproof Standard | IP67 |
Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
Operating Humidity | ≤95%(RH), non-condensing |
Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
Storage Humidity | ≤95%(RH), non-condensing |
Dimensions | 85.5 mm × 109 mm |
Casing | Metal + Plastic |
Weight | 250g |
