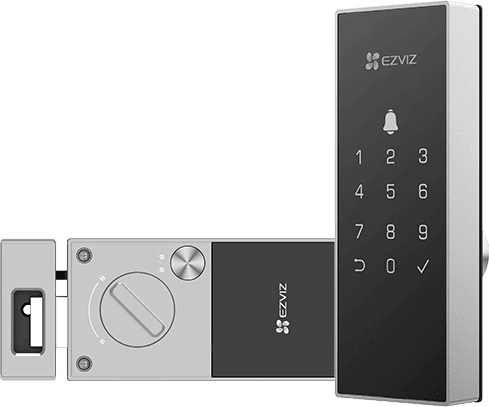

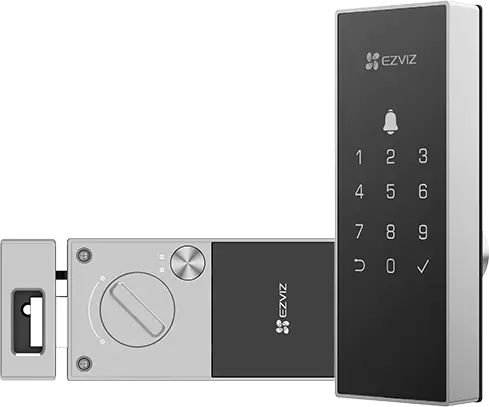

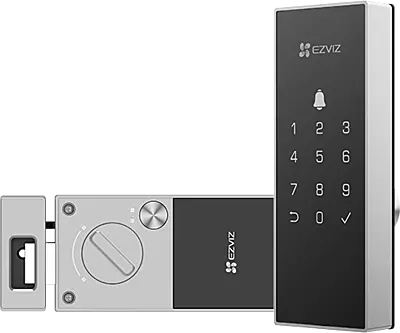

Ezviz Smart Rim Lock DL03 CS-DL03-R100-WP-GR
Connects to 2.4 GHz Wi-Fi
No Connectivity Hub Needed
Fingerprint Unlocking
Remote EZVIZ App Unlocking & Controls
Real-Time Lock Status Check & Alerts
Multiple Unlock Methods
Smart Integration with EZVIZ Cameras¹
Sturdy Lock Body
Anti-Tamper Alarm
Supports Emergency Power Supply
Model | CS-DL03 |
|---|---|
Technical Specification | |
Product material | Aluminum + Plastic |
Dimensions | Front Panel：154mm × 61mm × 18mm Rear Panel：155mm × 76mm × 33.5mm |
Communication | EZVIZ Connect 2.4G Wi-Fi |
Keyless unlocking | Support |
Working power | 4 AA Alkaline Batteries |
Working condition | -25℃~55℃ Humidity 10%~95% (Non-condensing) |
APP Function | |
Automatic locking | Support |
Lock status check | Support |
User management | Support |
Message notification | Support |
Door-left-open alert | Support |
Privacy mode | Support (Enable via EZVIZ APP) |
Temporary passcode | Support |
Remote unlock | Support |
Real-time notification | Support |
EZVIZ Connect | Support |
Low battery alert | Support |
Front Panel Function | |
Password unlock | Support (Up to 50 groups, 6-10 digits) |
Virtual passcode | Support |
Electric doorbell | Support |
Low battery alert | Support |
Anti-tamper alert | Support |
Anti-test alert | Support (enter 5 errors in 5 minutes, locked for 3 minutes) |
In the box | |
In the box | - Front Panel |
- Rear Panel | |
- Screw Kit | |
- Rear Panel Gasket | |
- Mounting Bracket (for the Rear Panel) | |
- Door buckle box | |
- Door buckle box Gasket (X3) | |
- AA-sized Battery (X4) | |
- Hole Templet | |
- Regulatory Information | |
- Quick Start Guide | |
Certifications | |
Certifications | CE (EMC / LVD / RED / RoHS) / REACH / SVHC / WEEE |
