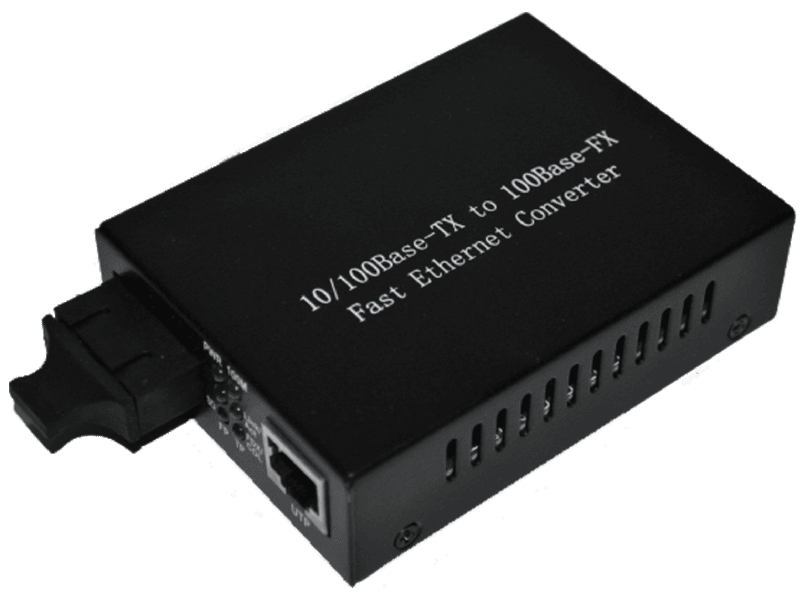

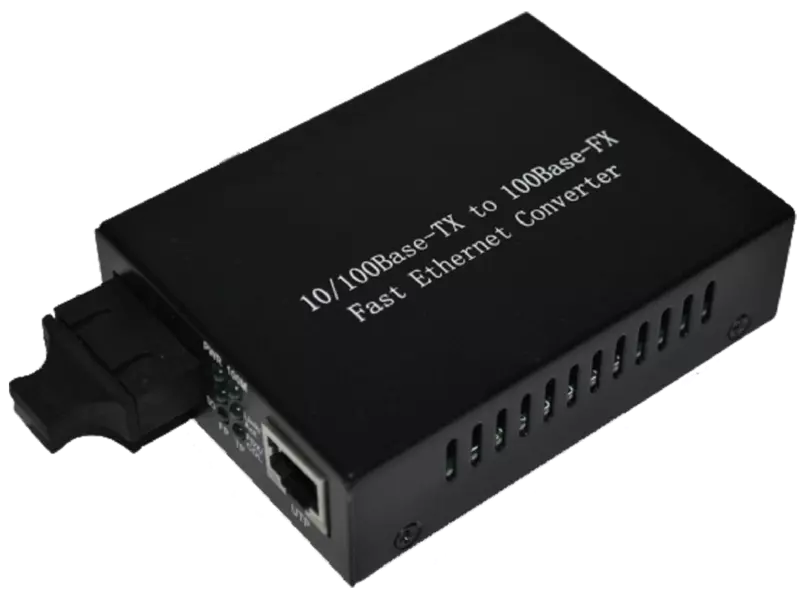

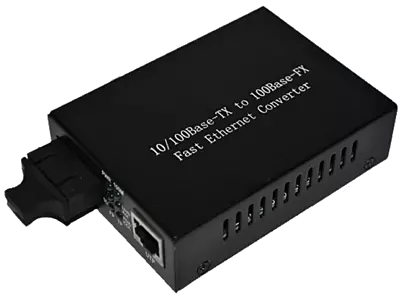

Dlink Media Convertor Duplex SM Giga DMC-G1000SC
D-Link Media Converter series offers signal conversion in a compact device.
Send a fiber signal over a variety of distances, with a selection of models suitable for 550 m, 10 km.
The Standalone Media Converters adhere to industry standards and are compliant with 802.3u & 802.3x.
Customize
Product Details
Description | Converts 1000 Base - T to 1000 Base - LX |
|---|---|
Fiber wavelength | 1300 nm |
Max distance | 10 Km |
Ports | One RJ - 45 and two Fiber port (SC type connector) |
Mode | Single - mode |
Used with | Standalone only |
Auto MDI support | Yes |
Operating Temperature | 0° C to 50° C |
Storage Temperature | -20° C to 70° C |
Operating Humidity | 5% to 90% non - condensing |
Operating Voltage | AC 240V or DC +5V |
Forwarding mode | Store and Forward |
Packet Buffer Memory | 1Mbit |
External Power Adapter | Yes |
Power Consumption Max at 240 V | 1.5W |
Power Consumption Standby at 240 V | 1.3W |
MTBF - hours | 10,0000 hours |
Emission EMI and Safety Certifications | CE, FCC |
Dimensions | 94 × 70 × 26 mm |
