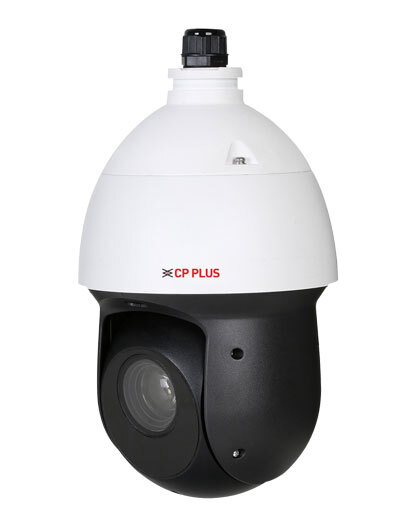

(STQC) Cp Plus 2MP IP PTZ Camera 25X 100 Meter CP-UNP-D2521L10-DAQ
1/2.8” 2MP PS CMOS Image sensor (0.9071 centimeters)
Max. 2MP (1920 × 1080)@1–25fps
Powerful 25x Optical and 16x Digital zoom
WDR(120dB), Day/Night(ICR), 2D NR/ 3D NR, Defog, AWB, AGC, BLC, HLC
Up to 300 Presets, 5 Scan, 8 Tour, 5 Pattern
Support Starlight Technology
IR Range of 100 Mtr., IP66
Customize
Product Details
Image Sensor | 1/2.8” 2MP PS CMOS Image sensor (0.9071 centimeters) |
Effective Pixels | 1920 (H) × 1080 (V) |
Electronic Shutter | 1/1 s–1/30,000 s |
Max. Aperture | F1.6–F3.5 |
RAM | 512 MB |
ROM | 256 MB |
Minimum Illumination | 0.005 lux@F1.6 (Color, 30 IRE), 0.0005 lux@F1.6 (B/W, 30 IRE), 0 lux (IR light) |
White Balance | Auto, Indoor, Outdoor, Tracking, Manual, Sodium lamp, Natural light, Street lamp |
S/N Ratio | ≥55 dB |
Focus Control | Auto, Semi-auto, Manual |
Lens | 4.8 mm–120 mm |
Close Focus Distance | 0.1 m–1.5m |
Angle of View | H: 60.6°–3.2°; V: 34.1°–1.8°; D: 69.4°–3.7° |
Iris Control | Auto, Manual |
DORI Distance | 1655.2 m (Detect), 653.8 m (Observe), 331.0 m (Recognize), 165.5 m (Identify) |
Back Light Compensation | BLC/ HLC/ WDR(120dB) |
IR Control | Zoom Prio, Manual, |
IR Number | 6 IR |
Day/Night | Auto (ICR)/Color/B/W |
IR | IR Range of 100 Mtr. |
Video Format | PAL/NTSC |
OSD | Camera title, Date & Time |
Gain Control (AGC) | Auto, Manual |
Resolution | 2MP (1920 × 1080), 720p (1280 × 720), D1 (704 × 576/704 × 480) |
Pan/Tilt Angle | Pan: 0° to 360° endless, Tilt: –15° to +90°, auto flip 180 |
Optical Zoom | 25× |
Digital Zoom | 16x |
Image Rotation | 180° |
Defog | Electronic |
Special Features | Up to 300 Presets, 5 Pattern, 8 (up to 32 presets per tour) Tour, 5 Scan |
Frame Rate | Main stream: 2MP (1920 × 1080)@1–25fps, 720p, D1@1–25fps Sub stream 1: D1/CIF@(1–25fps), Sub stream 2: 720p/D1 @(1–25 fps) |
SMD | Support |
Noise Reduction | 2D NR/3D NR |
RS-485 | 1 Channel |
Idle Motion | Pattern, Preset, Scan, Tour |
PTZ Protocol | CP-SD Pelco-P/D (Auto recognition) |
Protocol | SFTP, IPv6, IPv4, DNS, RTCP, NTP, RTP, HTTP, HTTPS, SNMP V3, TLS Version 1.2, TCP/IP, PPPoE, NFS, UDP, ICMP, SSL, DHCP, SMTP, RTSPS, ONVIF (Profile S, Profile G, Profile T), unicast, multicast |
Power-off Memory | Support |
Manual Speed | Pan: 0.1°–80°/s, Tilt: 0.1°–80/s |
Preset Speed | Pan: 80°/s, Tilt: 80°/s |
Alarm Event | Alarm input |
Alarm Linkage | Scan, Preset, Tour, Pattern, Alarm digital output |
Auto Tracking | Support |
Privacy Mask | Support |
IVS (Optional) | Tripwire, Intrusion, Object Abandon/ Missing, SMD, Face Detection |
Cyber Security | AES 256-bit Encryption, Configuration encryption, trusted execution, Digest, security logs, WSSE, account lockout, syslog, video encryption, IP/MAC filtering, HTTPS, trusted upgrade, trusted boot |
Audio In | 1 Channel |
Audio Out | 1 Channel |
Alarm IN | 2 (on-off value input: 0–5 VDC) |
Alarm Out | 1 Channel |
Weatherproof Standard | IP66, TVS 6000V lightning proof, Surge protection, Voltage transient protection |
Storage | SFTP, NAS, Mirco SD card (Max. 512GB) |
Certificates | ISO9001, CE, FCC and RoHS |
Power Source | 12 VDC, 3 A ± 10% |
Power Consumption | Basic: 6.5 W Max.: 17.25 W |
Operating Temperature | –40 °C to +65 °C |
Operating Humidity | ≤ 95% (RH) |
Dimension | 270.4 mm × 160.0 mm |
Weight | 2400g |
