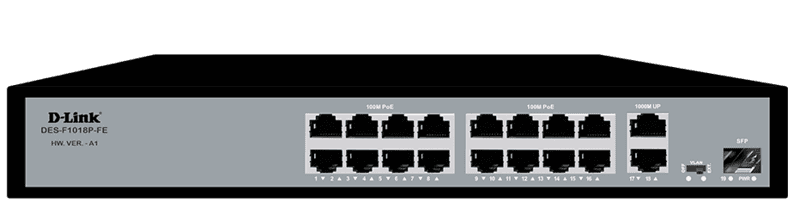

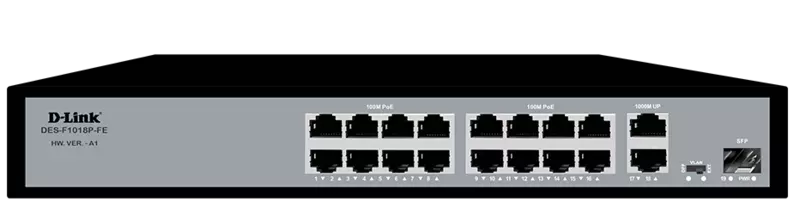

Dlink 16+2 Port POE Switch DES-F1018P-FE
Support upward port auto MDI/MDIX.
Adopted storage forward switch system
Smart power and minimum consumption guarantee PD requirement.
With power supply circuit protection function and protection back-end device safety
Automatically provide the adaptive device
Fanless design, energy saving and environmental protection.
16 10/100 Mbps POE port
2 gigabit uplink & 1 SFP port
Support saving power function when port connection
Network Interface | 16 10/100 Mbps PoE RJ45 port (port 1 ~port ) |
|---|---|
Transmission Rate | 10/100 Mbps Each port supports MDI / MDIX auto-flip and auto- Network interface:10BASE-T or 100BASE-TX Ethernet RJ-45 port |
Protocols and Standards | IEEE802.3i 10BASE-T |
Performance | Bandwidth: 2 Gbps (no block) |
LEDs Indicator | Power |
POE Pin | 1/2(+) 3/6(-); |
Power | Total Power: 120W |
Lightning protection | 6KV |
Physical specifications | Dimensions (LxWxH): 310mm*183mm*45mm |
Environmental norms | Operating Temperature: 0°C~40°C Storage Temperature: -10°C~70°C |
EMC | CE |
