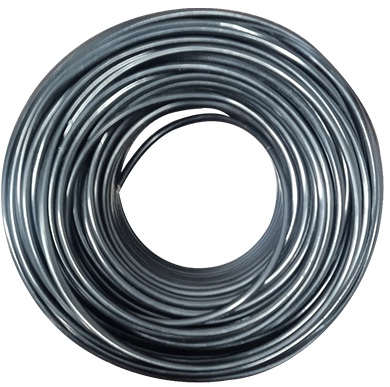

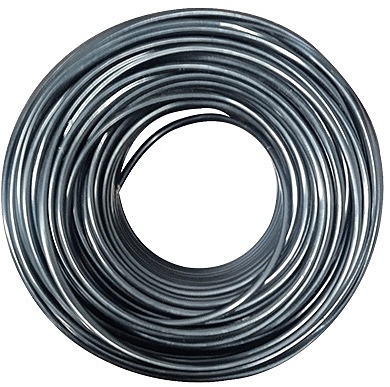

Cp Plus 3+1 Cable 90 Meter Outdoor CP-ECC-90RSO
₹1,234.00
Out of stock
Solid Annealed Bare Copper Conductor
LLDPE/PE Sheath Material
90 Mtr. Standard Cable Length
For Video, Power and Audio Communication
Product Details
Material | Solid Annealed Bare Copper Conductor |
Insulation Dia (Nominal) Video Core | 1.5mm |
Wire Dia | .52 ± .02mm |
Approx Overall Diameter | 5.6mm (Sheath) |
No. of Strands (Power Core) | 14 |
No. of Strands | 48 (Video Core) |
Insulation Thickness | 1.3 ± .05mm (Sheath) |
Shape of Conductor (Power Core) | Stranded |
Shape of Conductor (Video Core) | Solid |
Braiding Material | AL Alloy (Video Core) |
Insulation | LLDPE/PE (Power Core) |
Cable Length | 90 Mtrs. |
