Hikvision Analog Amplifier 240W DS-QAE0A240G1-VB6

240W 6-Zone Analog Amplifier

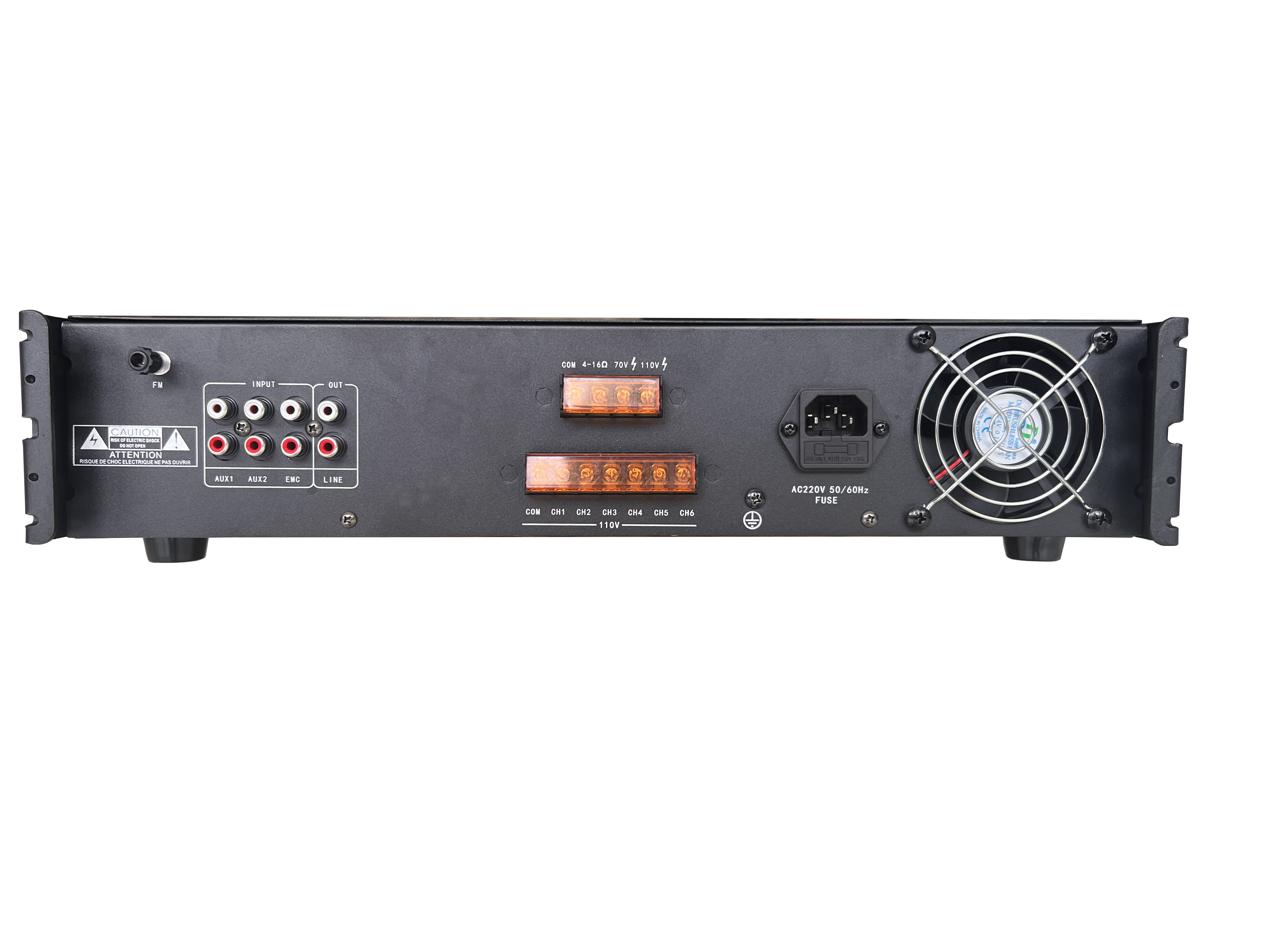

• The device has 2 auxiliary (AUX) line inputs, 1 emergency (EMC) input, and 2 microphone inputs; 1 auxiliary output, capable of cascading to the next power amplifier.

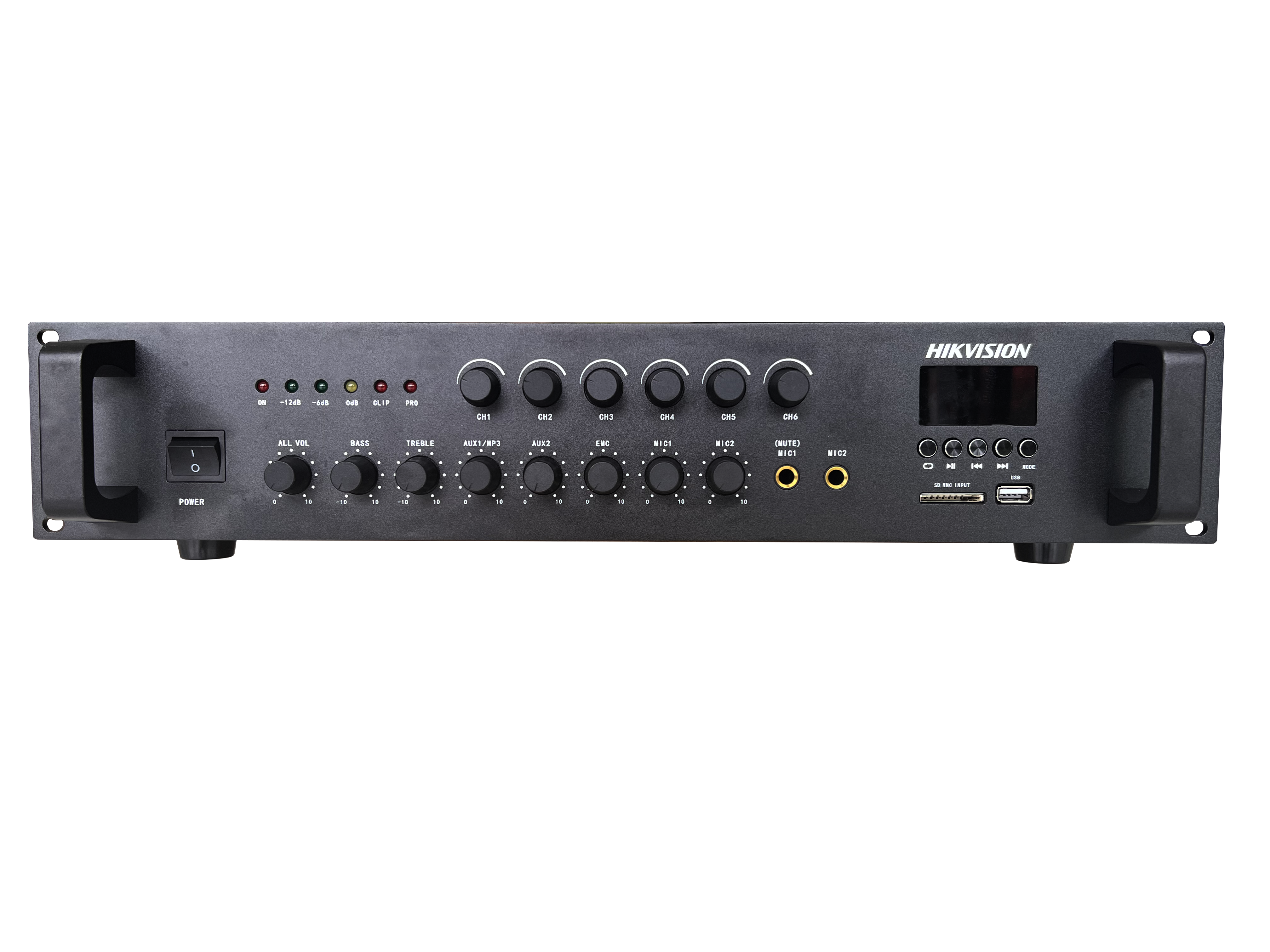

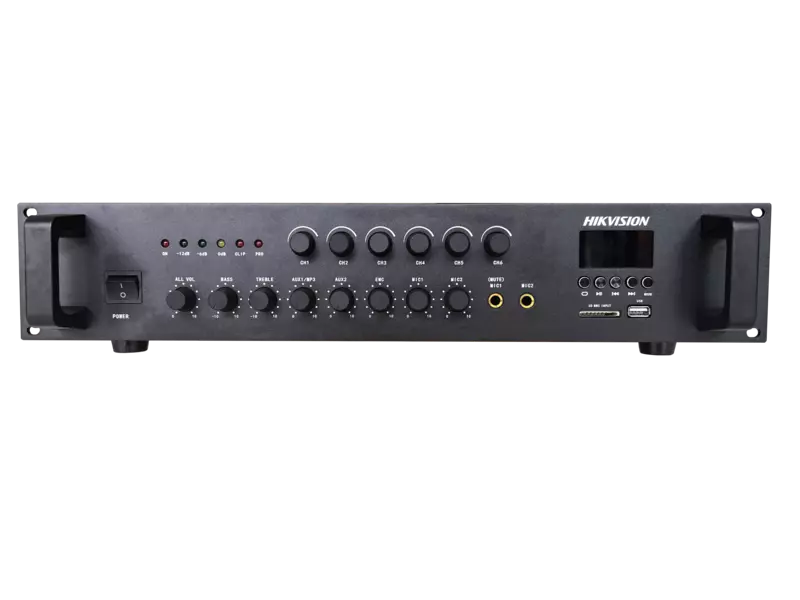

• Microphone 1/2, emergency line input, and line 1/2 can be independently adjusted, and it also has total volume control.

• Built in Bluetooth/MP3 function module for content playback on the phone.

• Equipped with six independent volume adjustment output functions.

• 5. Mic 1 and emergency line EMC inputs have the highest priority level, while Mic 1 and EMC have mixed outputs that can strongly cut other audio input signals.

• Mic 2, Line 1, Line 2, and MP3 (Bluetooth/SD/USB) have mixed output.

• Equipped with high and low frequency adjustment function.

• Equipped with advanced short-circuit, overheating, and overload protection functions.

• The circuit is equipped with amplitude limiting function to prevent excessive output of the amplifier and protect the speaker.

• Supports multiple indicator light displays (power, signal).

• By adopting a forced cooling structure with a fan, the machine can operate for a long time.
