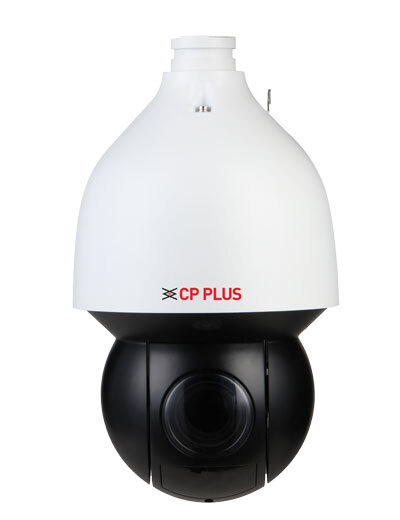

(STQC) Cp Plus 4MP PTZ Camera 32X 180 Meter CP-UNP-E3241L18-DAQ
1/2.8” 4MP PS CMOS Image sensor (0.9071 centimeters)
Max. 4MP (2688 x 1520)@25fps
Instastream, H.265, H.264, H.264B, H.264H, MJPEG
Support Triple stream
Powerful 32x Optical and 16x Digital zoom
WDR(120dB), 2D NR/ 3D NR, Day/Night(ICR), ROI, Defog, AWB, BLC
Up to 300 Presets, 5 Scan, 8 Tour, 5 Pattern
Support Starlight Technology
IR Range of 180 Mtr.
Support PoE, IP67, IK10
Customize
Product Details
Image Sensor | 1/2.8” 4MP PS CMOS Image sensor (0.9071 centimeters) |
Effective Pixels | 2560 (H) × 1440 (V) |
Max. Aperture | F1.6–F4.0 |
RAM | 1 GB |
ROM | 256 MB |
Minimum Illumination | Color: 0.005 lux@F1.6, B/W: 0.0005 lux@F1.6, 0 lux (IR light on) |
Focus Control | Auto, Semi-auto, Manual |
S/N Ratio | ≥55 dB |
White Balance | Auto, Indoor, Outdoor, Tracking, Manual, Sodium lamp, Natural light, Street lamp |
Angle of View | H: 55.8°–2.4°, V: 31.9°–1.3°, D: 63.7°–2.7° |
Focal Length | 4.8 mm–154 mm |
Close Focus Distance | 0.8 m–5.0 m |
Iris Control | Auto, Manual |
Electronic Shutter | 1/1 s–1/30,000 s |
DORI Distance | 2,124 mm (Detect), 839 mm (Observe), 425 mm (Recognize), 212 mm (Identify) |
Video Format | PAL/NTSC |
OSD | Camera title, Date & Time |
Back Light Compensation | BLC/ HLC/ WDR(120dB) |
Pan/ Tilt Range | Pan: 0° to 360° endless, Tilt: –15° to +90°, auto flip 180° |
Optical Zoom | 32× |
Digital Zoom | 16x |
Bit Rate | H265: 73 Kbps–8960 Kbps, H264: 184 Kbps–14848 Kbps |
Image Rotation | 180° |
Resolution | 4MP (2688 x 1520), 3.5MP (2560 x 1440), 3MP (2304 x 1296), 2MP (1920 x 1080), 1.3M (1280 x 960), 720P (1280 x 720), D1 (704 x 576), VGA (640 x 480), CIF (352 x 288) |
Day/Night | Auto (ICR)/Color/B/W |
Manual Speed | Pan: 0.1°/s–300°/s, Tilt: 0.1°/s–200°/s |
Ethernet | RJ-45 (10/100 Base-T) |
Preset Speed | Pan: 400°/s, Tilt: 300°/s |
Noise Reduction | 2D NR, 3D NR |
Power-off Memory | Support |
Privacy Mask | Up to 24 areas can be set, with up to 8 areas in the same view |
Image Stabilization | Electronic Image Stabilization (EIS) |
Defog | Electronic |
Special Features | Up to 300 Presets, 5 Pattern, 8 (up to 32 presets per tour) Tour, 5 Scan |
Idle Motion | Preset, Pattern, Tour, Scan |
IR Number | 4 IR |
IR | 180 Mtr. |
IR Control | Off, Manual, Auto and Zoom Priority |
stream Capability | Triple stream |
Gain Control (AGC) | Auto/Manual |
Video Compression | Instastream, H.265, H.264, H.264B, H.264H, MJPEG (Sub Stream) |
Bit Rate Control | CBR/VBR |
Frame Rate | Main stream: 4MP (2688 x 1520)@25fps, 2MP (1920 x 1080)@1–50fps, 720p (1280 x 720)@1– 50fps Sub stream 1: 720p (1280 x 720)@1–25 fps, D1 (704 x 576)@1–25 fps Sub stream 2: D1 (704 x 576)@1–25 fps, CIF (352 x 288)@1–25 fps |
Motion Detection | Support |
Audio Compression | PCM, G.711A, G.711MU, G.726, MPEG2-Layer2, G.722.1, AAC |
ROI | Support |
Alarm Event | Motion/tampering detection, Audio detection, Network disconnection detection, IP conflict detection, Memory card state detection, Memory space detection |
Two-way Audio | Support |
Auto Tracking | Support |
Audio In | 1 Channel |
Audio Out | 1 Channel |
Cyber Security | AES 256-bit Encryption, Configuration encryption, trusted execution, Digest, security logs, WSSE, account lockout, syslog, video encryption, IP/MAC filtering, HTTPS, trusted upgrade, trusted boot |
Alarm IN | 2 Channel |
Alarm Out | 1 Channel |
Alarm Linkage | Capture, Preset, Tour, Pattern, Recording, Triggering on-off value output, Audio, Send email |
Protocols | SFTP, IPv6, IPv4, DNS,RTCP, NTP, RTP, HTTP, HTTPS, SNMP V3, TLS Version 1.2, TCP/IP, PPPoE, NFS, UDP, ICMP, SSL, DHCP, SMTP, RTSPS, ONVIF (Profile S, Profile G, Profile T), unicast, multicast |
IVS (Optional) | Tripwire, Intrusion, Object Abandon/ Missing, SMD, Face Detection, Fast Moving, Parking Detection, Crowd Gathering, Loitering Detection |
SMD | Support |
Storage | SFTP, NAS, Mirco SD card (Max. 512GB) |
User/Host | 20 (Total Bandwidth: 64 M) |
Browser | IE, Chrome, Firefox, Safari |
Certificates | ISO9001, CE, FCC and RoHS |
Power Source | 24 VDC, 2.5 A (± 25%) PoE +(802.3at) |
Power Consumption | Basic: 8W Max.: 19W (IR + PTZ working) |
Weatherproof Standard | IP67, IK10, TVS 6000 V lightning proof, Surge protection, voltage transient protection |
Operating Temperature | –40 °C to +70 °C (–40 °F to +158 °F) |
Operating Humidity | ≤ 95% (RH) |
Dimension | 331.9 mm × 190.4 mm |
Weight | 4600g |
