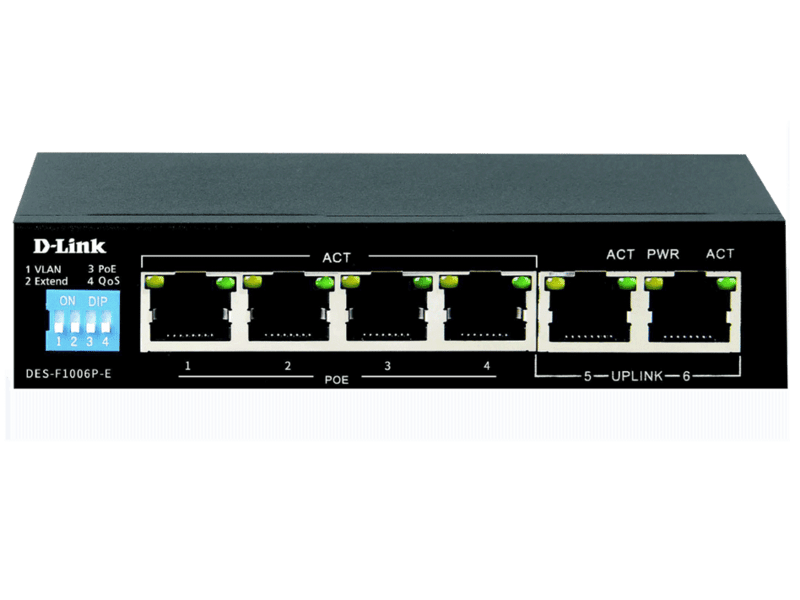

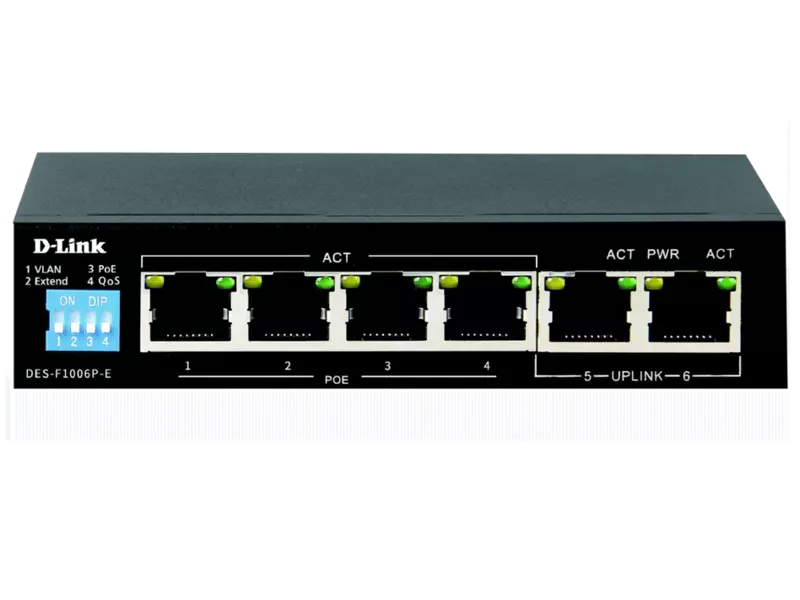

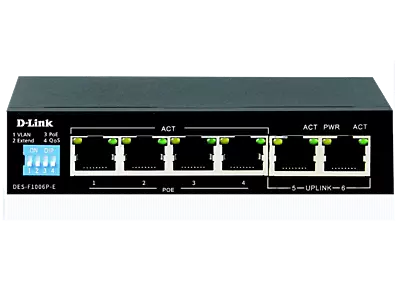

Dlink 4+2 Port POE Switch DES-F1006P
Superior connectivity
4 10/1 0OMbps Fast Ethernet ports
2 10/1 0OMbps uplink port
60 watts available for PoE
Flow control for protection against data loss
Maximum distance of 250m
Standards
IEEE 802.3 1 0BASE-T Ethernet (twist-pair copper)
IEEE 802.3u 1 00BASE-TX Fast Ethernet (twisted pair copper)
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet
Easy to Use
Plug-and-play installation
IEEE 802.3x Flow Control
Auto MDI I MDIX crossover for all ports
Fanless device
Customize
Product Details
100Base-TX Interface | Ethernet RJ-45 port |
|---|---|
Auto MDI/MDIX | Yes |
Switching Capacity | 1.2 Gbps |
Max. Packet Forwarding Rate | •1 OM: 14,800pps• 1 QOM: 148,800pps |
Dimension | (LxWxH): 125 x 75 x 27mm |
Weight | 0.75kg |
Operation Temperature | Oto 40 °C (32 to 104 °F) |
Operation Humidity | 10% to 90% non-condensing |
Maximum Power Consumption | External Power adapter: 100~240 - 50/60Hz, 52V, 1.15A |
FAN | Fanless |
802.3x Flow Control | Yes |
