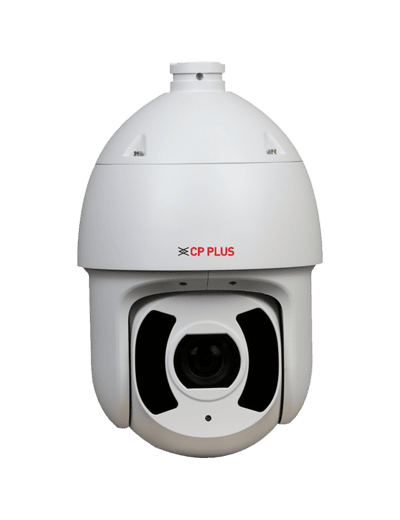

(STQC) Cp Plus 2MP PTZ Camera 45X 300 Meter CP-UNP-F4521L30-DPQ

Image Sensor

1/2.8” 2MP PS CMOS Image Sensor (0.9071 centimeter)

Effective Pixels

1920(H) x 1080(V)

Minimum Illumination

Color: 0.005 Lux@F1.6, B/W: 0.0005 Lux@F1.6, 0 Lux@F1.6 (IR on)

Focus Control

Auto/Semi-Auto/Manual

RAM

512 MB

ROM

256 MB

White Balance

Auto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/Natural light/Street lamp

Lens

3.95 mm–177.75 mm

Max. Aperture

F1.6–F4.95

Angle of view

H: 65.7°–1.9°, V: 39.4°–1.1°, D: 73.1°–2.1°

Close Focus Distance

0.1 Mtr. – 1 Mtr.

Iris Control

Auto/Manual

DORI Distance

2451.7 Mtr. (Detect), 972.9 Mtr. (Observe), 490.3 Mtr. (Recognize), 245.2 Mtr. (Identify)

Electronic Shutter

1/1 s–1/30,000 s

Back Light Compensation

BLC / HLC / WDR(120dB)

S/N Ratio

≥ 55 dB

Optical Zoom

45×

Digital Zoom

16x

Image Rotation

180°

Pan & Tilt Range

Pan: 0° to 360° endless, Tilt: –20° to +90°, auto flip 180°

Power-off Memory

Support

Manual Speed

Pan: 0.1° ~260° /s, Tilt: 0.1° ~120° /s

Preset Speed

Pan: 300°/s, Tilt: 200°/s

Image Stabilization

Electronic (EIS)

Privacy Masking

Up to 24 Areas can be set, with up to 8 areas in the same view

Special Features

Up to 300 Presets, 5 Pattern, 8 (up to 32 presets per tour) Tour, 5 Scan

Idle Motion

Preset/ Tour/ Pattern/ Scanning

Defog

Electronic

IR Distance

300 Mtr.

IR Number

6 (IR)

IR Control

Zoom Prio, Manual, Smart IR, Off

Day/Night

Auto (ICR)/Color/B/W

Gain Control

Auto/Manual

Video Format

PAL/NTSC

OSD

Camera title, Date & Time

Video Compression

Instastream, H.265, H.264+, H.264H, H.264B, H.264, MJPEG(Sub Stream)

Resolution

2MP (1920 × 1080), 1MP (1280 × 720), D1 (704 × 576), CIF (352 × 288)

Frame Rate

Main stream: 2MP/1MP/D1 @(1–25/30 fps) Sub stream 1: 2MP/1MP/D1 @(1–25/30 fps) Sub stream 2:D1/CIF @(1–25/30 fps) Sub stream 3: D1/CIF @(1–25/30 fps)

Stream Capability

Quad Stream

Bit Rate

H264: 64 kbps–8192 kbps, H265: 25 kbps–6400 kbps

Bit Rate Control

CBR/VBR

Motion Detection

Support

ROI

Support

Noise Reduction

2D/3D DNR

Two-way Talk

Support

Audio In

1 channel

Audio Out

1 channel

Audio Compression

PCM, G.711a, G.711Mu, G.726, MPEG2-Layer2, G722.1

Alarm I/O

7/2 channel In/Out

User/Host

20 (total bandwidth: 64 Mbps)

Ethernet

RJ-45 (10/100Base-T)

Alarm Event

Motion/Tampering detection, audio detection, network disconnection detection, IP conflict detection, memory card state detection, memory space detection

Protocol

IPv4, IPv6, HTTP, HTTPS, ARP, RTSPS, SMTP, SFTP, DHCP, DNS, UPnP, NTP, Multicast, NFS, PPPoE, SNMP V1/V2/V3, ICMP,IGMP, ONVIF (Profile S, Profile G, Profile T), Unicast, Multicast

IVS (Optional)

Tripwire, Intrusion, Object Abandon/ Missing, SMD, Face Detection

Cyber Security

AES 256-bit Encryption, Configuration encryption, trusted execution, Digest, security logs, WSSE, account lockout, syslog, video encryption, IP/MAC filtering, HTTPS, trusted upgrade, trusted boot

Storage

SFTP, NAS, Micro SD card (support max. 512 GB)

Browser

Microsoft Edge and Chrome

Operating Temperature

–40 °C to +70 °C

Operating Humidity

≤ 95% RH, Non condensing

SR 332

Quality Level II

Weatherproof Standard

IP67, IK10, TVS 8000V lightning proof, surge protection, voltage transient protection

Certificates

MTBF Certificate from STQC, EMI/EMC, ISO9001, CE, FCC and RoHS, BIS, STQC approved compliance report

Power Source

24 VDC, 2.5 A ± 25% PoE+ (802.3at)

Power Consumption

24 VDC, 2.5 A ± 25%: Basic: 13 W, Max: 25 W (illuminator + PTZ) , PoE+ (802.3at): Basic: 13 W, Max: 25 W (illuminator + PTZ)

Casing

Metal

Dimension

337.4mm × 209mm

Weight

5.9 kg
