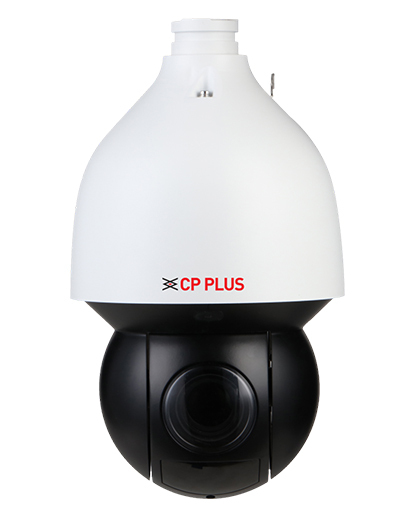

(STQC) Cp Plus 2MP PTZ Camera 32X 180 Meter CP-UNP-E3221L18-DAQ

Image Sensor

1/2.8” 2MP PS CMOS Image sensor (0.9071 centimeters)

Effective Pixels

1920 (H) × 1080 (V)

Max Aperture

F1.6–F4.0

S/N Ratio

≥55 dB

RAM

512 MB

ROM

256 MB

Minimum IR

Color: 0.005 lux@F1.6, B/W: 0.0005 lux@F1.6, 0 lux (IR light on)

Focal Length

4.5 mm–144 mm

Focus Control

Auto, semi-auto, manual

White Balance

Auto, Indoor, Outdoor, ATW, Manual, Sodium lamp, Natural light, Street lamp

Angle of View

H: 58.4°–3.0°, V: 33.4°–1.7°, D: 66.4°–3.4°

Close Focus Distance

0.1 m–1.5 m

Iris Control

Auto, Manual

Resolution

2MP (1920 × 1080), 960p (1280 × 960), 720p (1280 × 720), D1 (704 × 576), CIF (352 × 288)

DORI Distance

1986mm (Detect), 785mm (Observe), 398mm (Recognize), 198mm (Identify)

Electronic Shutter

1/1 s–1/30,000 s

Back Light Compensation

BLC/ HLC/ WDR(120dB)

Optical Zoom

32×

Digital Zoom

16x

Bit Rate

H265: 25 kbps–6400 kbps, H264: 64 kbps–10496 kbps

Image Rotation

180°

Pan/ Tilt Range

Pan: 0° to 360°, Endless, Tilt: –15° to +90°, Auto flip 180°

Power-off Memory

Support

SMD

Support

Day/Night

Auto (ICR)/Color/B/W

Video Format

PAL/NTSC

OSD

Camera title, Date & Time

Manual Speed

Pan: 0.1°/s–300°/s, Tilt: 0.1°/s–200°/s

Noise Reduction

2D NR/ 3D NR

Preset Speed

Pan: 400°/s, Tilt: 300°/s

Image Stabilization

Electronic Image Stabilization (EIS)

Special Features

Up to 300 Presets, 5 Pattern, 8 (up to 32 presets per tour) Tour, 5 Scan

Privacy Mask

Up to 24 areas can be set, with up to 8 areas in the same view

Defog

Electronic

Idle Motion

Pattern, Preset, Scan, Tour

Stream Capability

Quad stream

IR Number

4 IR

IR

180 Mtr.

IR Control

Zoom Prio, Manual, Smart IR, Of

Gain Control (AGC)

Auto, Manual

Video Compression

Instastream, H.265, H.264, H.264H, H.264B, MJPEG (Sub Stream 1)

Bit Rate Control

CBR/VBR

Frame Rate

Main stream: 2MP (1920 × 1080)@1–25fps, 720p, D1@1–25fps Sub stream 2: 2MP (1920 × 1080)@1–25fps, 720p, D1 @1–25 fps Sub stream 3: D1@1-25fps Sub stream 4: D1@1-25fps

Motion Detection

Support

Audio Compression

PCM, G.711A, G.711MU, G.726, MPEG2- Layer2, G.722.1, AAC

Auto Tracking

Support

ROI

Support

Ethernet

1 × RJ-45 (10/100 Base-T)

Audio Input

1 channel

Audio Output

1 channel

IVS (Optional)

Tripwire, Intrusion, Object Abandon/ Missing, SMD, Face Detection

Protocols

SFTP, IPv6, IPv4, DNS,RTCP, NTP, RTP, HTTP, HTTPS, SNMP V3, TLS Version 1.2, TCP/IP, PPPoE, NFS, UDP, ICMP, SSL, DHCP, SMTP, RTSPS, ONVIF (Profile S, Profile G, Profile T), unicast, multicast

Alarm I/O

2/1

Alarm Linkage

Capture, Recording, Send email, Preset, Tour, Pattern, Alarm digital output

Alarm Event

Motion/Tampering detection, Audio detection, Network disconnection detection, IP conflict detection, Memory card state detection, Memory space detection

Cyber Security

AES 256-bit Encryption, Configuration encryption, trusted execution, Digest, security logs, WSSE, account lockout, syslog, video encryption, IP/MAC filtering, HTTPS, trusted upgrade, trusted boot

Tracking Trigger Event

Motion detection, Video tampering, Network disconnection, IP address conflict, Illegal access, Storage anomaly

Browser

IE, Chrome, Firefox

Storage

SFTP, NAS, Mirco SD card (Max. 512GB)

Certificates

ISO9001, CE, FCC and RoHS

Power Source

24 VDC, 2.5 A ± 25% PoE+ (802.3at)

Power Consumption

Basic: 8 W Max: 18.5W (illuminator on)

User/ Host

20 (total bandwidth: 64 Mbps)

Weatherproof Standard

IP67, IK10, TVS 6000V lightning proof, surge protection, voltage transient protection

Operating Temperature

–40°C to +70°C

Operating Humidity

≤ 95% (RH)

Dimension

332 mm × 190 mm

Weight

4600g
